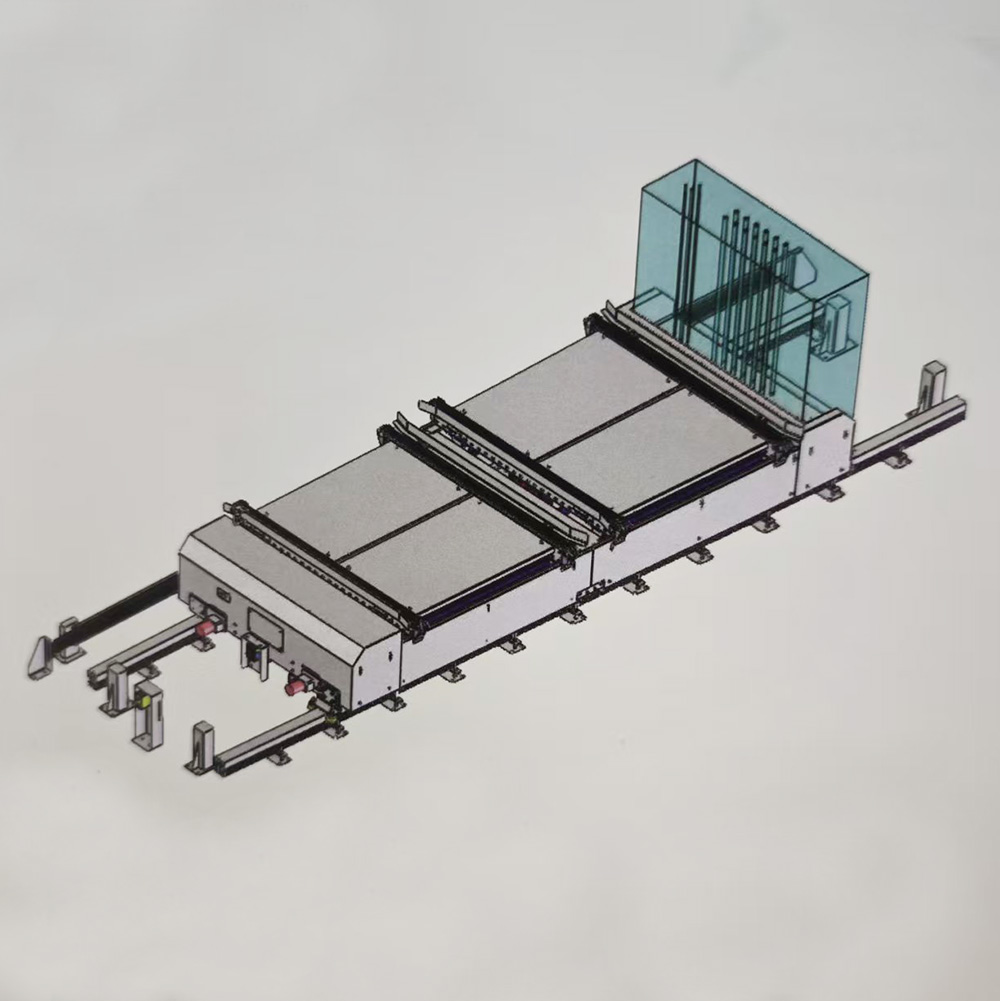

RGV Straight Shuttle Car
Model Description
■ Can be equipped with chain conveyor or roller conveyor
■ Single or double station
■ Fully enclosed and detachable main body
■ RGV track: aluminum alloy or light rail
■ K/R series built-in motor drive
| Chain center distance | Pallet size-150mm |
| Guide inboard dimensions | Pallet size+20mm |
| height of the conveyor surface | 650-1200mm |
| Stroke length | Customized according to Project |
| Running speed | Full loaded 120m/min,Nothing loaded 160m/min |
| Motor power | Conveying 0.37-0.75kw/B walking2.2-5.5kw/B |
| Conveying speed | 12-16-18m/min |
| Rotation time | 5.2s 90degree |
| Motor brand | SEW NORD CPG |
| Bearing/Housing brand | HRB NSK SKF TR FS |
| Chain branding | Donghua |
| The whole machine is loaded | 1000-3000kg |
