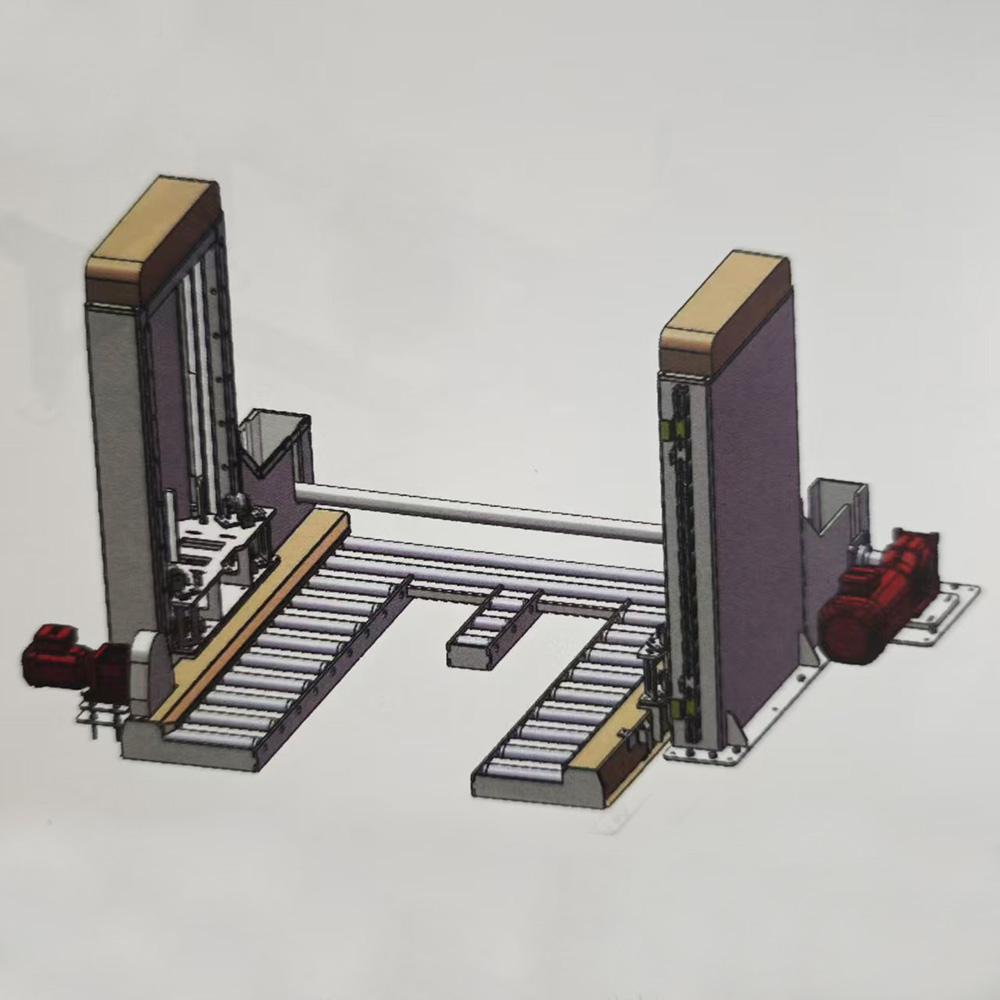

Low-Position Roller Lifter
Model Description
■ Double chain drive rollers Φ60*3mm, Φ76*3mm
■ Lifting drive located at the bottom of the frame
Lifting uses chain drive
■ Compatible with pallet jacks
■ K/R series motor drive
| Roller center distance | 134.9-151.8-166.7mm |
| Deflector | 650-1600mm |
| Rise and fall to the high level | 80-1200mm |
| Motor power | Conveying 0.37-0.75kw/B lifting5.5-22kw/B |
| Conveying speed | 12-16-18m/min |
| Lifting speed | 10m/min |
| Motor brand | SEW NORD CPG |
| Roller brand | Zhengyang |
| Bearing/Housing brand | HRB NSK SKF TR FS |
| Chain branding | Donghua |
| The whole machine is loaded | 500-1500kg |
