Starter Motor Bushing

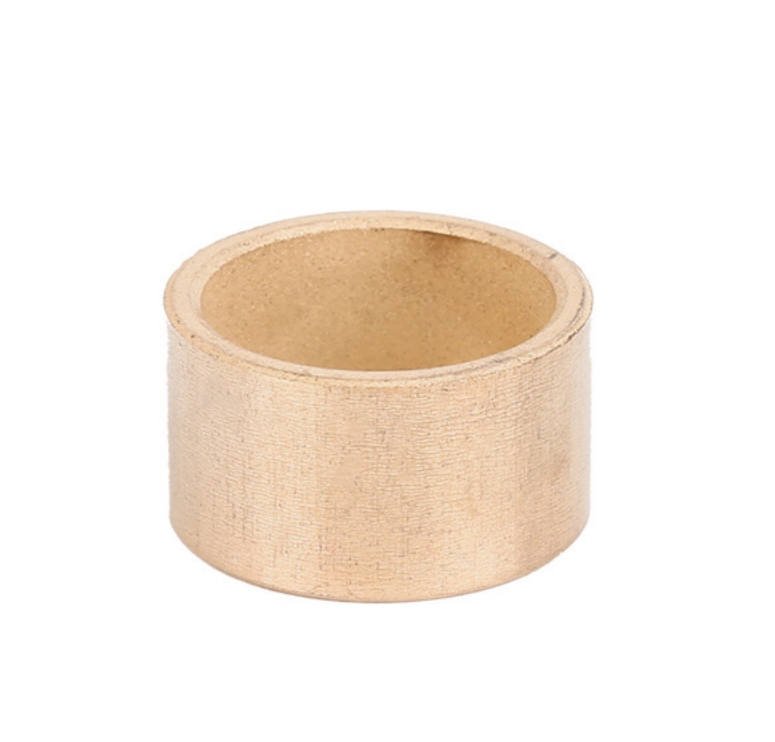

Starter Motor Bushing – XH004 (Size: 19×23×13mm, P/N: M2000301041)

Ensure optimal performance and extended service life for your starter motor with our heavy-duty Bushing (Model: XH004), engineered to withstand high loads and reduce friction in demanding applications.

Send Us Your Inquiry

    Categories: ,

    Technical Specifications:
    • Precision Dimensions: 19mm (ID) × 23mm (OD) × 13mm (Length)
    • OEM Part Number: M2000301041
    • Material Composition:

    • High-strength bronze alloy (SAE 841)

    • Oil-impregnated porous structure

    • 5-10% graphite content for self-lubrication
      • Temperature Range: -40°C to +200°C
      • Load Capacity: 70N/mm²

    Key Features:
    ✓ Heavy-Duty Construction: Designed for commercial vehicle starters
    ✓ Self-Lubricating: Oil reservoirs provide continuous lubrication
    ✓ Wear Resistance: Hardened surface treatment
    ✓ Vibration Damping: Reduces starter motor noise
    ✓ Corrosion Protection: Suitable for harsh environments

    Applications:

    • Heavy-duty truck starter motors

    • Construction equipment starters

    • Agricultural machinery starters

    • Compatible with select Bosch, Denso, and Mitsubishi starters

    Installation Guide:

    1. Press-fit using proper arbor press (5-6kN recommended)

    2. Ensure proper alignment with housing bore

    3. Verify running clearance (0.04-0.08mm optimal)

    4. Apply light oil before installation

    Quality Assurance:
    ▲ 100% dimensional inspection
    ▲ Meets ISO 3547-1 standards
    ▲ Material certification available

    Why Choose XH004?
    ✔ OEM-quality direct replacement
    ✔ Extends starter motor lifespan
    ✔ Reduces maintenance requirements
    ✔ Improves starter motor efficiency

    Maintenance Tip:
    Inspect during routine starter service – replace if ID exceeds 19.1mm or scoring is visible.
