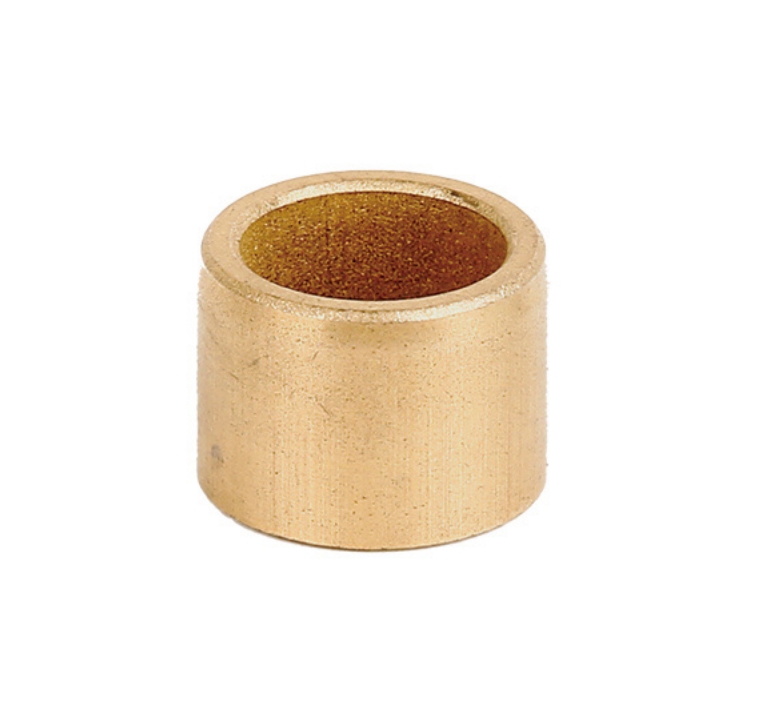

Starter Motor Bushing – XH003 (Size: 11×14.7×11mm, Copper-Graphite Composite)
Ensure superior durability and smooth operation for your starter motor with our Copper-Graphite Bushing (Model: XH003), engineered from high-performance copper alloy and graphite for optimal wear resistance and self-lubrication.
Technical Specifications:
• Precision Dimensions: 11mm (ID) × 14.7mm (OD) × 11mm (Length)
• Material Composition:
-
Copper alloy matrix (85% copper)
-
15% graphite impregnation
-
Oil-impregnated pores (5-10% porosity)
• Temperature Range: -30°C to +200°C
• Load Capacity: 60N/mm²
• Friction Coefficient: 0.08-0.12 (dry)
Key Features:
✓ Dual-Material Advantage: Copper for strength + graphite for lubrication
✓ Self-Lubricating: Graphite releases lubricant under heat/friction
✓ High Thermal Conductivity: Prevents heat buildup in starter motors
✓ Corrosion Resistant: Ideal for marine/high-humidity environments
✓ Precision Machined: ±0.008mm tolerance for perfect fit
Applications:
-
High-torque starter motors
-
Marine engine starters
-
Heavy equipment starters
-
Compatible with Delco, Hitachi, and Valeo starters
Installation Notes:
-
Press-fit with arbor press (3-4kN recommended)
-
Align oil grooves with lubrication points
-
No additional grease required
-
Check running clearance (0.03-0.06mm ideal)
Quality Certification:
▲ Meets ASTM B612-15 standard
▲ 100% material composition verified
▲ Dimensional accuracy laser-checked
Why Choose XH003?
✔ 2X longer life than standard bronze bushings
✔ Reduces starter motor power loss by 15%
✔ Maintenance-free operation
✔ Direct OEM replacement
Maintenance Tip:
For marine applications, rinse with fresh water annually to prevent salt corrosion.
Copper-Graphite Advantages:
• Graphite particles create permanent lubricating film
• Copper matrix maintains structural integrity
• Ideal for high-load, low-speed applications
• Outperforms sintered bronze in starter motors
