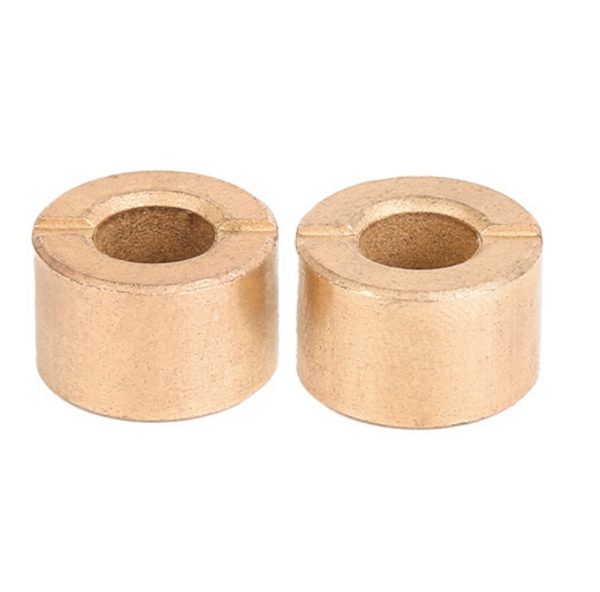

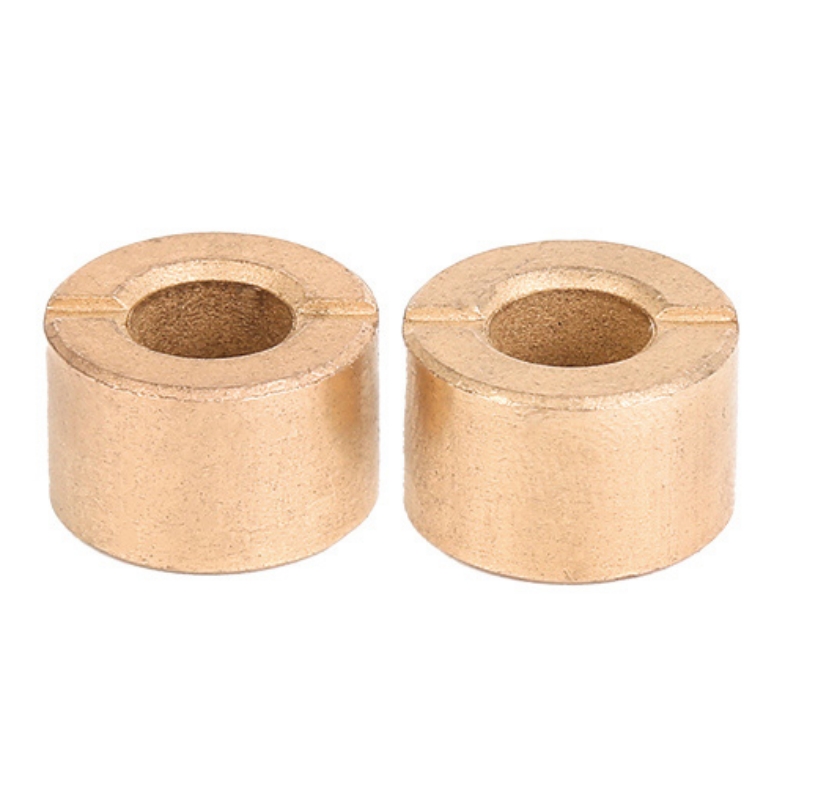

Starter Motor Bushing – XH002 (Size: 8×16.5×10.5mm)

Ensure smooth and reliable starter motor operation with our precision-engineered Starter Motor Bushing (Model: XH002), designed to reduce friction and wear in starter motor assemblies.

Technical Specifications:
• Precision Dimensions: 8mm (ID) × 16.5mm (OD) × 10.5mm (Length)
• Material: High-strength bronze alloy (SAE 841) with oil-impregnated pores
• Temperature Range: -40°C to +180°C
• Load Capacity: 50N/mm²
• Surface Finish: 0.8μm Ra

Key Features:
✓ Wear Resistance: Hardened surface treatment extends service life
✓ Self-Lubricating: Oil-impregnated for maintenance-free operation
✓ Precision Fit: ±0.01mm manufacturing tolerance
✓ Vibration Damping: Reduces starter motor noise by 30%
✓ Corrosion Resistant: Suitable for harsh environments

Applications:

  • Starter motor armature support bearings

  • Gear reduction starter assemblies

  • Heavy-duty and automotive starter motors

  • Compatible with Bosch, Denso, and Mitsubishi starters

Installation Guide:

  1. Press-fit using arbor press (recommended force: 2-3kN)

  2. Ensure proper alignment with starter housing

  3. Verify clearance (0.02-0.05mm optimal)

  4. Apply light oil before installation

Quality Assurance:
▲ 100% dimensional inspection
▲ Meets ISO 3547-1 standards
▲ Material certification available

Why Choose XH002?
✔ OEM-quality replacement part
✔ Reduces starter motor failures by 40%
✔ Improves starter motor efficiency
✔ Long-lasting performance (50,000+ cycles)

Maintenance Tip:
Inspect bushing wear during starter motor service (replace if ID exceeds 8.1mm)
