Starter Motor Bushing

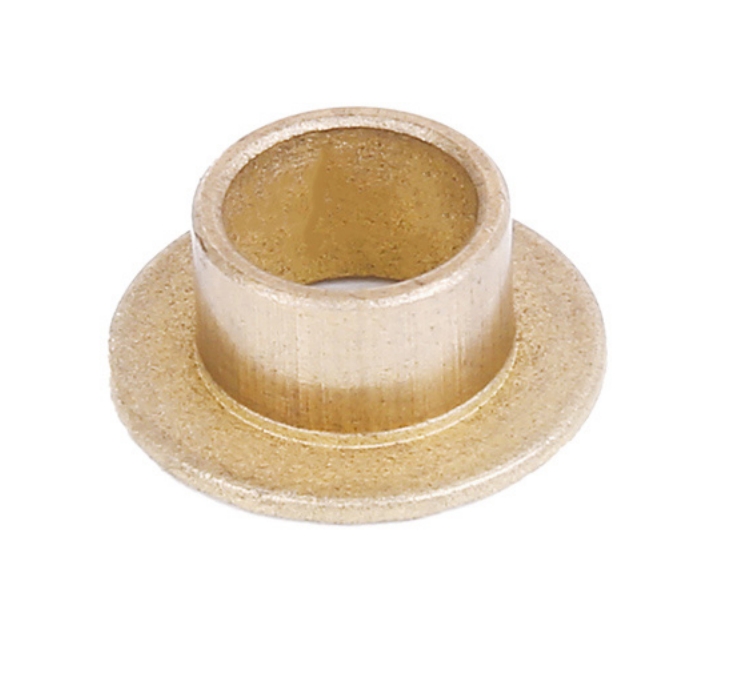

Starter Motor Bushing with Integrated Washer – XH006 (Size: 8×10×16×7-1mm)

Ensure perfect alignment and simplified installation with our innovative Bushing-Washer Assembly (Model: XH006), combining a precision bushing and integrated washer in one durable component for starter motor applications.

Send Us Your Inquiry

    Categories: ,

    Technical Specifications:
    • Multi-Layer Dimensions:

    • Bushing: 8mm (ID) × 10mm (OD) × 16mm (Length)

    • Integrated Washer: 7mm thickness, 1mm flange
      • Material Composition:

    • Bushing: Oil-impregnated bronze (SAE 841)

    • Washer: High-carbon steel (HRC 40-45)
      • Temperature Range: -40°C to +180°C
      • Load Capacity:

    • Radial: 50N/mm²

    • Axial: 30N/mm²

    Key Features:
    ✓ Integrated Design: Eliminates separate washer installation
    ✓ Pre-Aligned Construction: Ensures perfect washer/bushing alignment
    ✓ Dual-Material Advantage: Bronze for bearing, steel for load distribution
    ✓ Self-Lubricating: Oil-impregnated bronze matrix
    ✓ Vibration Lock: Flange prevents rotational movement

    Applications:

    • Gear reduction starter motors

    • Heavy-duty starter assemblies

    • Automotive and marine starters

    • Compatible with Bosch, Denso and Valeo starters

    Installation Advantages:

    1. Single-component installation saves 60% assembly time

    2. Prevents washer misalignment issues

    3. Integrated flange eliminates separate locking components

    4. Maintains proper axial spacing automatically

    Installation Guide:

    1. Press-fit using 3-4kN force

    2. Verify washer contact surface is flush

    3. Check 0.03-0.06mm running clearance

    4. No additional lubrication required
