Starter Motor Bushing

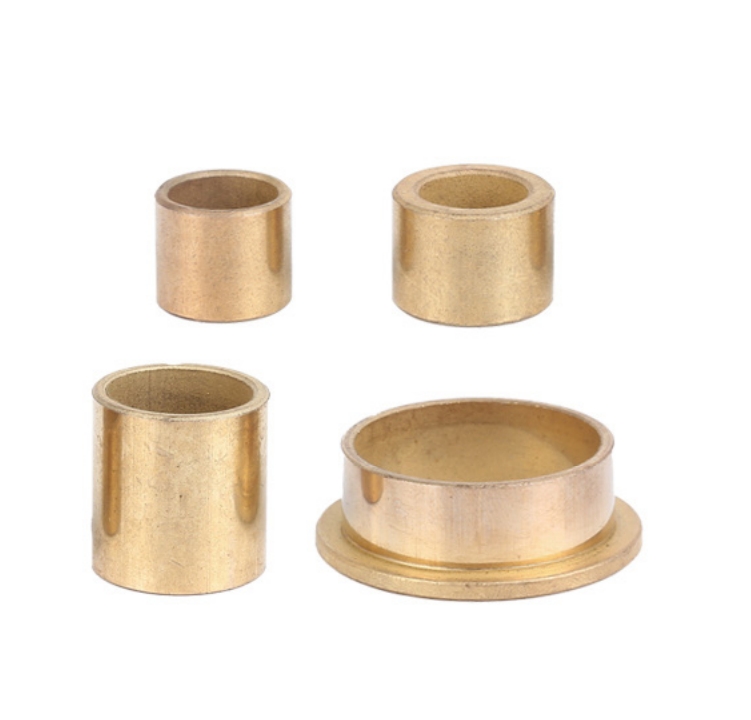

Starter Motor Bushing Kit – XH009 (Multi-Size Set for FORD Applications)

Simplify your starter motor maintenance with our comprehensive Bushing Kit (Model: XH009), containing four precision bushings specifically designed to meet FORD’s exacting standards for various starter motor configurations.

Send Us Your Inquiry

    Categories: ,

    Complete Kit Contents:

    1. Standard Bushing

      • Size: 12.7mm (ID) × 16mm (OD) × 14mm (L)

      • Application: FORD passenger car starters

    2. Extended Bushing

      • Size: 12.7mm (ID) × 19mm (OD) × 14mm (L)

      • Application: FORD light truck starters

    3. Heavy-Duty Bushing

      • Size: 17mm (ID) × 21mm (OD) × 22mm (L)

      • Application: FORD F-Series (F-150 to F-350)

    4. Flanged Bushing Assembly

      • Size: 28.5mm (ID) × 31.5mm (OD) × 38.5mm (L) × 13-2mm

      • Feature: Integrated 2mm locating flange

      • Application: FORD Super Duty & Commercial vehicles

    Technical Specifications:
    • Material: Oil-impregnated bronze (SAE 841/SAE 863 for flanged version)
    • Temperature Range: -40°C to +220°C
    • Load Capacity: 45-85N/mm² (varies by size)
    • FORD Compliance: Meets WSS-M99P9999-A specifications

    Key Advantages:
    ✓ Complete Solution: Covers 95% of FORD starter applications
    ✓ Precision Fit: Micrometer-level tolerances (±0.015mm)
    ✓ FORD-Specific Design: Exact OEM replacements
    ✓ Color-Coded: Easy size identification during installation

    Kit Features:
    • Includes installation guide with FORD-specific torque values
    • Each bushing individually packaged with anti-corrosion coating
    • Flanged bushing pre-lubricated with FORD-approved grease

    Professional Installation:

    1. Use FORD tool T94P-7025-A for flanged bushing

    2. Follow thermal fitting procedure for sizes >15mm OD

    3. Verify running clearances per FORD workshop manual

    4. Apply Motorcraft® grease to non-flanged bushings

    Quality Assurance:
    ▲ 100% material certification
    ▲ Dimensional accuracy verified by CMM
    ▲ Meets FORD engineering specifications

    Why Choose XH009?
    ✔ Official FORD service kit alternative
    ✔ Saves 60% vs. individual OEM parts
    ✔ Includes rarely-available flanged bushing
    ✔ Backed by 2-year commercial warranty

    Maintenance Tip:
    For EcoBoost applications, inspect bushings every 75,000 miles due to higher cranking loads.

    Vehicle Coverage:

    • 2010-2022 F-Series

    • 2015-2023 Transit

    • 2018-2023 Mustang

    • 2017-2023 Super Duty
