Starter Motor Brush Holder

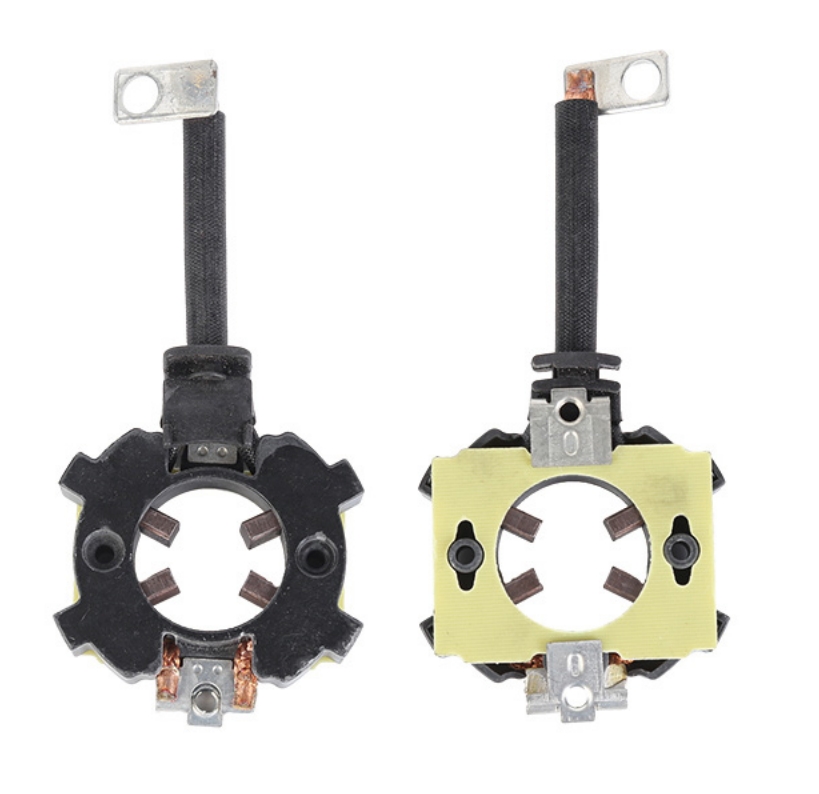

Starter Motor Brush Holder – XH135 (Size: 4.5×12×12.5mm, OD: 67mm, ID: 30.5mm)

Ensure precise brush alignment and reliable starter performance with our Starter Motor Brush Holder (Model: XH135), specifically designed for MAZDA vehicles.

Send Us Your Inquiry

    Categories: ,

    Technical Specifications:
    • Brush Slot Dimensions: 4.5mm × 12mm × 12.5mm
    • Holder Body Dimensions: 67mm (OD) × 30.5mm (ID)
    • Compatible Part Numbers: 137929, 698317, 23330AA000, 213.000.178.7
    • Material: High-temperature reinforced nylon composite
    • Temperature Range: -40°C to +180°C

    Key Features:
    ✓ MAZDA-Specific Design: Exact OEM replacement
    ✓ Precision Alignment: Ensures optimal brush-to-commutator contact
    ✓ Heat Resistant: Withstands starter motor operating temperatures
    ✓ Durable Construction: Reinforced fiberglass matrix
    ✓ Vibration Damping: Reduces brush chatter

    Applications:

    • MAZDA starter motor brush assemblies

    • Compatible with select MAZDA 2, 3, 6, CX-5, and CX-9 models

    • Factory replacement for original brush holders

    Installation Notes:

    1. Always replace worn brushes when installing new holder

    2. Clean commutator surface before assembly

    3. Verify proper brush spring tension (800-1000g recommended)

    4. Check for holder cracks or heat damage during replacement

    Why Choose XH135?
    ✔ Direct MAZDA OEM replacement
    ✔ Precision-molded for perfect fit
    ✔ Extends brush and commutator life
    ✔ Rigorous quality testing

    Compatibility Note:
    Please verify this holder matches your specific MAZDA starter motor model before purchase.
