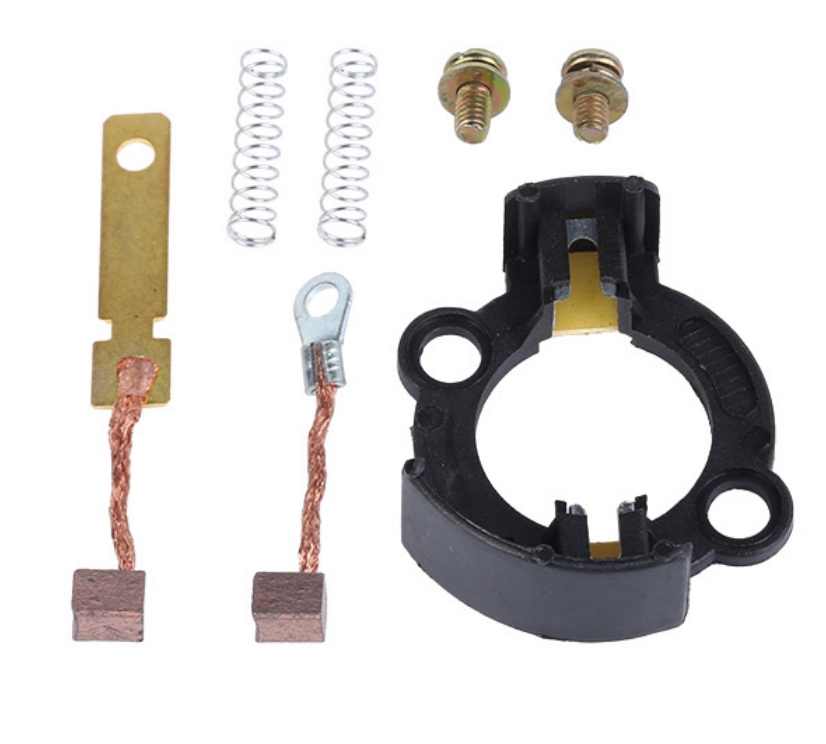

Motorcycle Carbon Brush and Holder Assembly – XH122 (Size: 6×6×7.5mm)
Keep your motorcycle’s starter motor running smoothly with our precision Carbon Brush and Holder Assembly (Model: XH122), designed for compact starter systems in various motorcycle applications.
Technical Specifications:
• Brush Dimensions: 6mm (W) × 6mm (L) × 7.5mm (H)
• Holder Material: Heat-resistant nylon composite
• Brush Composition:
-
High-density carbon-graphite (80% purity)
-
Nickel-plated copper terminals
-
Temperature range: -20°C to +120°C
Key Features:
✓ Compact Design: Ideal for space-constrained motorcycle starters
✓ Enhanced Conductivity: Low-resistance terminals (1.2mΩ)
✓ Vibration Resistant: Reinforced holder structure
✓ Easy Installation: Complete ready-to-install assembly
✓ Wear Indicator: Visual inspection window
Applications:
-
Japanese sport bikes (600cc-1000cc)
-
Cruiser motorcycle starters
-
Off-road/dual-sport bikes
-
Compatible with select Honda, Yamaha, and Suzuki models
Installation Guide:
-
Disconnect battery before service
-
Clean commutator with electrical contact cleaner
-
Verify brush spring tension (500-700g recommended)
-
Check brush seating after installation
Quality Assurance:
▲ 100% continuity tested
▲ Meets JIS D 5002 standards
▲ Dimensional tolerance ±0.02mm
Why Choose XH122?
✔ Complete assembly solution
✔ Restores original starting performance
✔ OEM-quality materials
✔ Extended service life
Maintenance Tip:
For high-performance bikes, inspect annually or every 10,000km.
Note:
Always verify compatibility with your specific motorcycle model and starter type.
