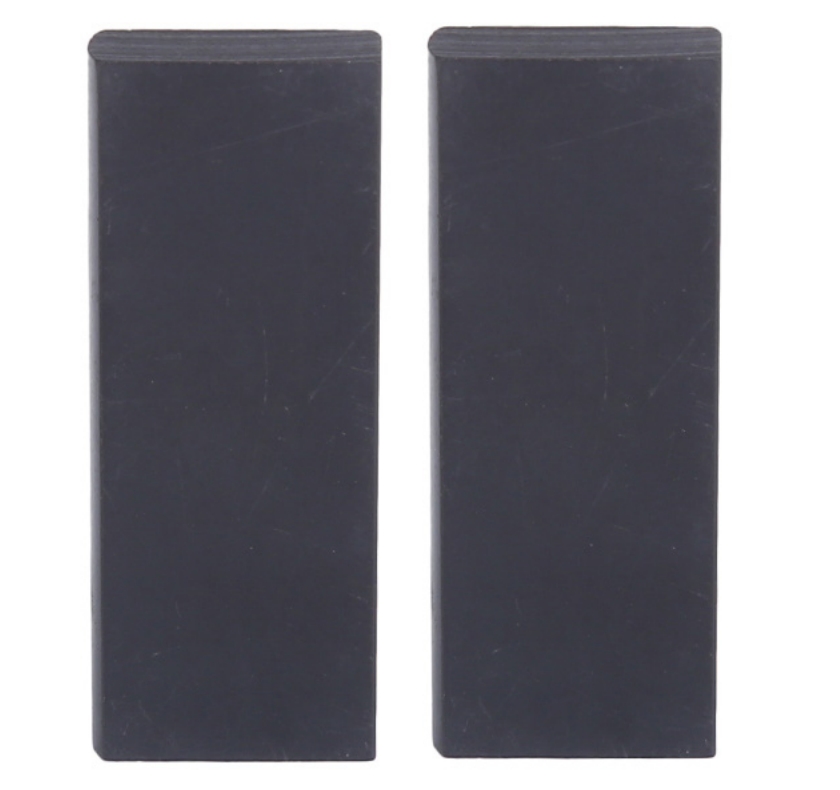

Carbon Blade – XH249 (Size: 5×15×39mm, Model: CB-13)

Engineered for precision cutting in demanding industrial applications, our Carbon Blade (Model: XH249) delivers exceptional performance and durability for specialized cutting tasks.

Categories: ,

Technical Specifications:
• Dimensions: 5mm (Thickness) × 15mm (Width) × 39mm (Length)
• Model Number: CB-13
• Material Composition:

  • Ultra-high density carbon composite (95% purity)

  • Reinforced with Kevlar fibers

  • PTFE-impregnated surface coating
    • Hardness: 94-98 Shore A
    • Temperature Resistance: -70°C to +350°C

Performance Advantages:
✓ Extended Reach Design: 39mm length for deep cutting applications
✓ Enhanced Stability: 15mm width reduces vibration
✓ Anti-Wear Coating: Increases blade life by 40%
✓ Electrically Conductive: <0.5Ω resistance
✓ Chemical Inertness: Resists all industrial solvents

Industrial Applications:

  • Carbon fiber composite trimming

  • Aerospace component fabrication

  • Automotive seal cutting

  • Industrial gasket production

  • Medical implant manufacturing

Operational Guidelines:

  1. Optimal speed range: 2,500-6,500 RPM

  2. Maximum feed rate: 0.5mm/sec for hard materials

  3. Recommended coolant: Water-soluble synthetic

  4. Replace at 0.25mm edge wear

Quality Assurance:
▲ Meets ISO 13485 medical device standards
▲ 100% laser-inspected edge quality
▲ Batch-tested for material consistency

Why Choose XH249?
✔ Precision-ground cutting edges (±0.005mm)
✔ FDA and EU compliant for food contact
✔ Custom hardness options available
✔ Technical support included

Maintenance Tip:
Store in controlled humidity (40-60% RH) to prevent moisture absorption.
