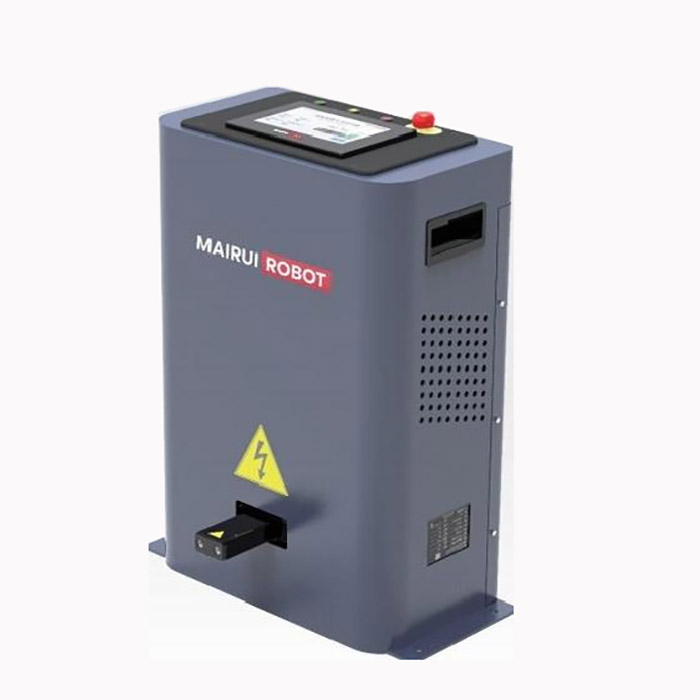

Charging StationMRC-Plus
Functional Features
- Supportsintelligent online charging,offline charging modes,providing intelligent robot charging capabilities
- Can fix at specificpoints,provideCharging Station with four fixed holes,can be fixed in charging area
- Inteligentchargingmanagement supports muli-level power threshold charging control,intelligently adjusts current, autonomously charges the robot when the battery is low,cuts off power after charging is complete,and the robot returns to work.Supports idle time charging and one-key charging
- Supports overcharge protection,power-off protection,overvoltage protection,and overcurrent protection
- User-friendlyhuman-machineinteraction,supports LCD screen display of current,voltage,and battery level
Application Scenarios
Tail charging type:This is used in conjunction with latent mobile robots to provide power to the robots.Compatible with all models of latent mobile and transfer robots.
| Index | Parameters | |
|
Basic Parameters |
Dimensions(mm) | 465(L)×342(W)×630(H) |
| Charging Method | Tail Charge | |
| Charging Mode | Automatic/Manual | |
| Input Voltage(v) | AC 220-240 | |
| Output Voltage(V) | 54.6 | |
| Maximum output Current(A) | 20 | |
| Smart Current Adjustment | Supported | |
| Net Weight (KG) | 35 | |
| LCD Display Screen | Optional | |
| Safety
protection |
Protection Type | Overcharge Protection,Power Failure Protection, Overvoltage Protection,Overcurrent Protection |
| Electric Shock Protection | Detection voltage output | |
|
Installation and Fixation |
Single Power(W) | 2000 |
| Socket Type | GB standard 10A three-hole socket | |
| Mounting Method | 4 grounding bolts | |
